Semantic Model Diff

…a change tracker for Power BI semantic models

Semantic models do not have version control. Not really. You can store .pbip files in Git, and Tabular Editor gives you a .bim file you can diff, but neither of those workflows answers the simplest question a team asks after an update cycle: what changed?

I do not mean “which file was touched.” I mean: which measures were modified, which columns were added, which relationships were removed, and what exactly is different in the DAX expression that someone edited last Tuesday. That is the question I kept running into, and the one I built this notebook to answer.

This is my third submission to the Fabric Semantic Link Developer Experience Challenge. The first two (a DAX unit test harness and a lakehouse validation notebook) test whether the model produces correct results. This one tests whether the model itself has changed, and tells you precisely how.

The problem

Every Power BI developer has been in this situation. A semantic model gets promoted from dev to production. Something breaks. A report shows unexpected numbers, or a relationship is missing, or a column that used to exist is gone. The first question is always: “What changed since last time?”

Without a structured answer, the debugging starts. Someone opens Tabular Editor and clicks through tables. Someone else opens the old .bim file in a text editor and does a manual comparison. If the model has 40 tables and 200 measures, that process takes long enough that you start questioning your career choices.

I wanted something I could run in a Fabric notebook that would snapshot the full model metadata, store it as JSON, and then produce a colour-coded diff between any two snapshots. No manual clicking. No text-editor heroics.

How it works

The notebook has two engines: a snapshot engine and a diff engine.

The snapshot engine connects to a semantic model via the Tabular Object Model (TOM), exposed through semantic-link-labs, and captures everything: tables, columns, measures, relationships, partitions, roles, and shared expressions. Each object gets recorded with all its properties. A table entry includes its name, description, hidden flag, data category, and type (regular table, calculated table, or calculation group). A measure entry includes the full DAX expression, format string, display folder, and whether it has a KPI attached.

The snapshot is saved as a plain JSON file in the attached Lakehouse’s Files area. File names encode the dataset name and UTC timestamp, so snapshots sort chronologically and you can keep as many as you need.

The diff engine takes any two snapshots and compares them object by object. Each object type has a natural key (for tables, the name; for columns, the table plus column name; for relationships, the relationship name). Objects are categorised as Added, Removed, or Modified. For modified objects, the engine reports exactly which properties changed and shows the old and new values side by side.

What gets captured

The snapshot covers seven object types:

• Tables: name, description, hidden, data category, type
• Columns: data type, format string, calculated column expression, display folder, sort-by column, summarize-by
• Measures: DAX expression, format string, display folder, KPI presence
• Relationships: from/to table and column, active flag, cross-filter direction, cardinality
• Partitions: mode, source type, query or M expression
• Roles: RLS row filter expressions per table
• Shared expressions: M parameters and Power Query definitions

That last category matters more than you might expect. Shared expressions include connection strings and parameter values. If someone changed the data source path in a parameter, this diff catches it.

The diff output

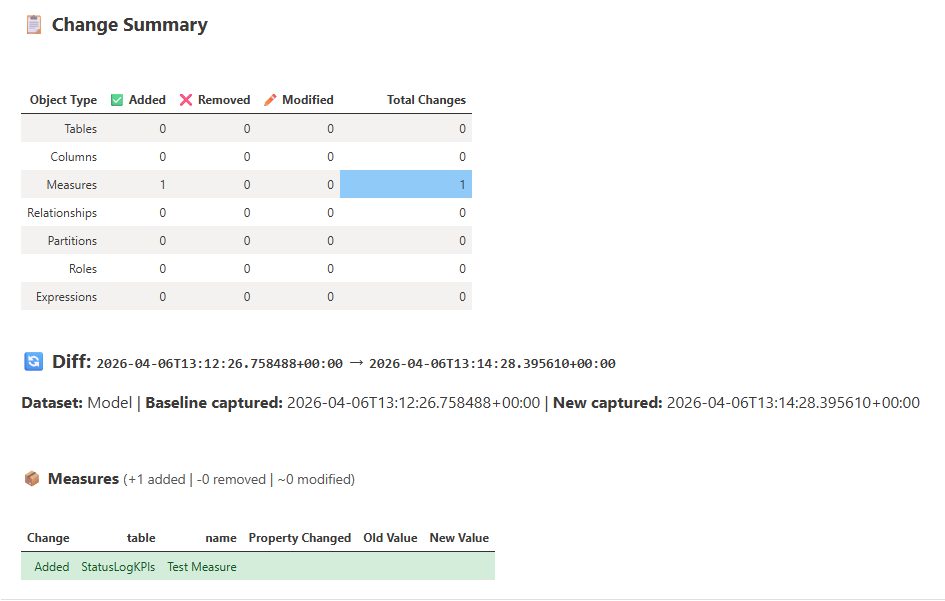

The diff produces a summary table first: one row per object type, with counts of added, removed, and modified objects. In a clean promotion where nothing changed, all counts are zero and you get a green “No changes detected” message. That is the happy path.

When changes exist, the notebook renders a colour-coded DataFrame per object type. Green rows for additions, red for removals, amber for modifications. Modified rows show the specific property, old value, and new value on the same line. If a measure’s DAX expression changed, you see the full old expression and the full new expression right there.

The notebook also exports the full diff as a self-contained HTML file. I use that for sharing with team members who are not running notebooks. Drop it in a Teams channel or attach it to a pull request.

Using it

The workflow is four steps:

1. Take a baseline snapshot before making changes
2. Edit the model (in Power BI Desktop, Fabric Model View, Tabular Editor, wherever)
3. Take a new snapshot
4. Compare the two and review the diff

Configuration is two variables: DATASET (the name or GUID of the semantic model) and WORKSPACE (optional, defaults to the notebook’s workspace). Everything else runs from those values. Authentication is handled by Fabric, so there are no credentials to manage.

If you already have two snapshot files and just want to compare them, you can skip straight to step 4. The notebook auto-selects the two most recent snapshots if you do not specify file paths explicitly.

Why not just diff the .bim file?

A .bim file is JSON, so you can run a text diff on it. I have done that. The problem is that a .bim file is a single monolithic document. A text diff on a 15,000-line JSON file where someone reordered a few properties is not a useful diff. You get hundreds of lines of noise for a single meaningful change.

The structured diff in this notebook compares at the object level, not the text level. If a measure’s expression changed, you see that one measure and just the changed expression. Everything else is filtered out. The signal-to-noise ratio is massively better.

The .bim diff also does not work if you are comparing across environments. If you want to verify that a dev model matches production before promotion, you need to snapshot both and compare the metadata, not the files. This notebook handles that.

Where this goes next

Running this in a Fabric pipeline as a post-publish step is the obvious next move. Snapshot the model after every deployment, compare against the previous snapshot, and fail the pipeline (or post a Teams notification) if objects were unexpectedly removed.

Cross-environment comparison is another use case I am already running: snapshot Dev and Prod on the same day, diff them, and confirm that what was promoted is exactly what was intended.

A more ambitious extension would be inline DAX expression diffs using a line-diff algorithm instead of full expression replacement. The structure supports it. I have not built that part yet.

The notebook is submitted to the Fabric Notebook Gallery as part of the Semantic Link Developer Experience Challenge. If you have ever spent an afternoon trying to figure out what changed in a semantic model, this might save you the detective work.

Source code available here: vestergaardj/Semantic-Link-TestHarness: Semantic Model Test Harness: Unit & Regression Testing for DAX (using Semantic Link Labs)
